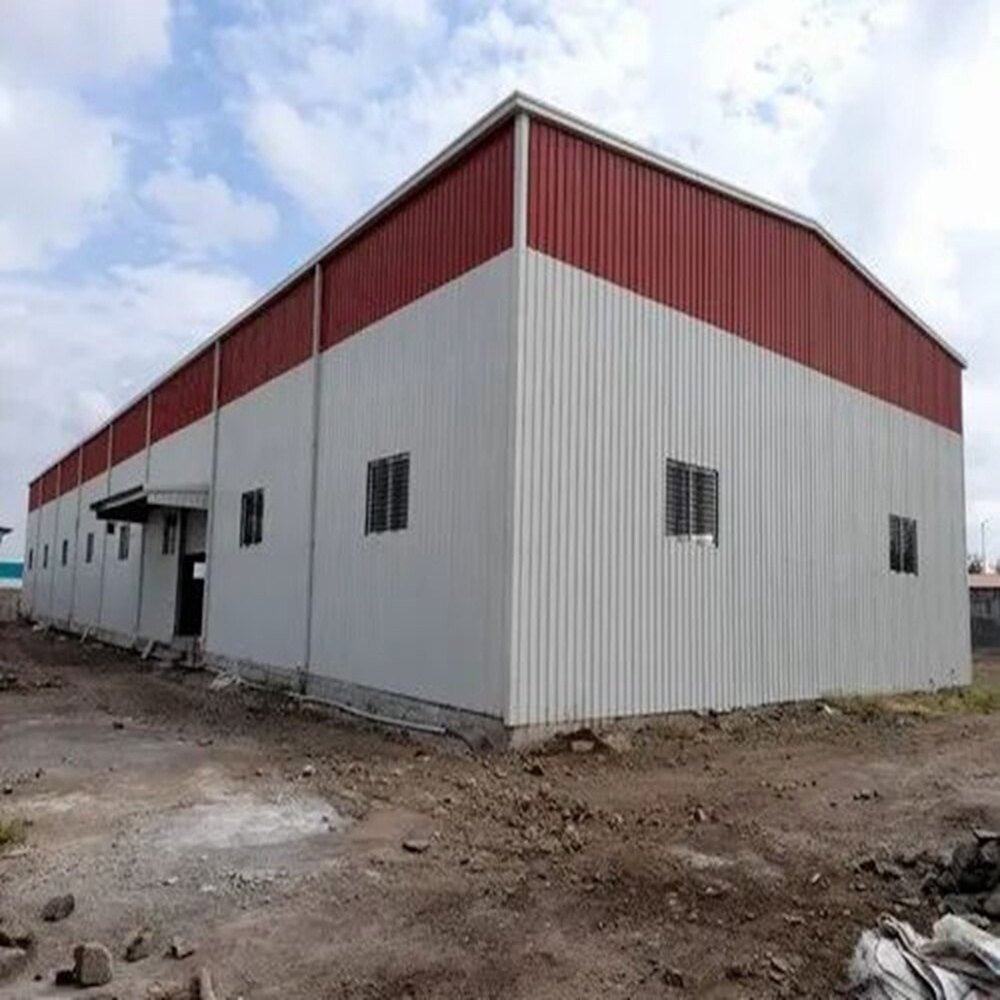

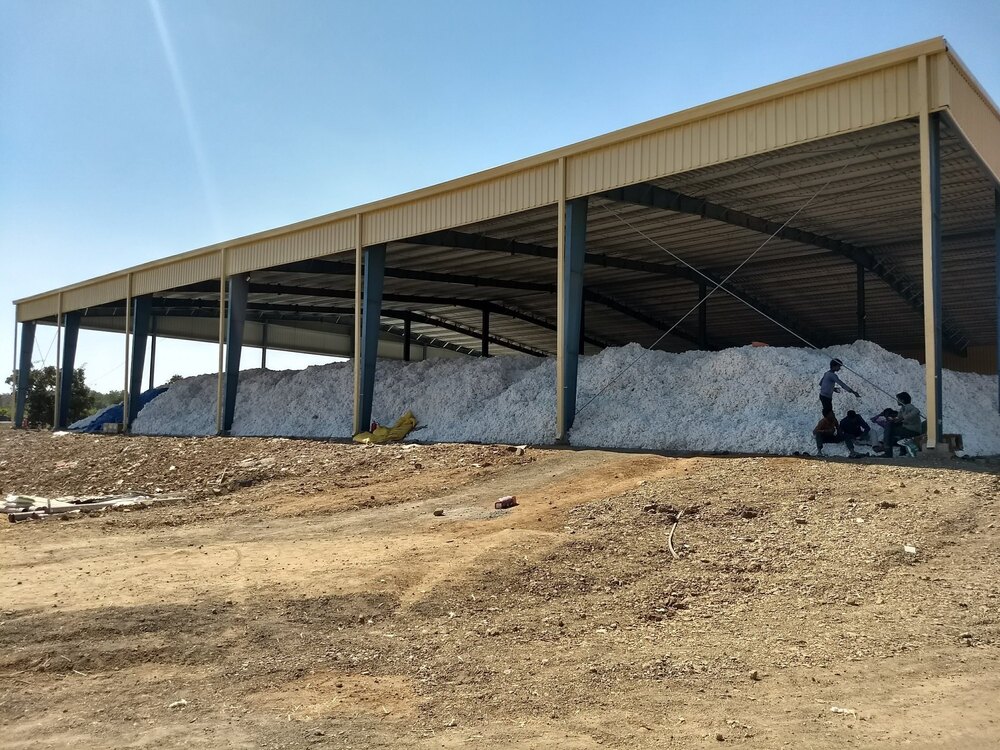

Ginning Mill Shed

Ginning Mill Shed Specification

Connection
Nut & Bolt Assembly

Door Material
Steel

Wall Materials
Pre-fabricated PUF Insulated Panels

Life Span
25-30 Years

Open Style
Sliding/Manual

Insulation
PUF Insulated Roofing and Walls

Window Material
Aluminum Framed Glass

Dimension (L*W*H)
Customized (e.g., 100 ft x 50 ft x 20 ft)

Material
Mild Steel Structure

Roof Material
Corrugated Galvanized Iron Sheets

Thickness Of Wall Panel
40-60 mm

Door
Roller Shutter Door Available

Window
Clear Glass Windows

Window Style
Fixed / Sliding

Floor Material
Reinforced Cement Concrete (RCC)

Floor Load
5-10 kN/m2

Roof Dead Load
0.35-0.50 kN/m2

Roof Live Load
0.75 kN/m2

Earthquake Intensity
Zone IV Compliant

Color
Light Grey / Blue

Use
Cotton Ginning Processing Unit

Expansion Possibility
Yes, Modular Expansion Possible

Purlin Type
Cold Formed Z & C Purlins

Crane Provision
Yes, Up to 5 Tons

Maintenance
Low Maintenance Required

Drainage
Gutter with Downspout Arrangement

Surface Treatment
Galvanized / Painted Finish

Frame Type
Pre-engineered Steel Structure

Fire Resistance
Fire-retardant Insulated Panels

Lighting
Industrial LED Fixtures (Optional)

Eave Height
6 m (customizable)

Foundation
Cement Concrete Isolated Footing with Anchor Bolts

Installation Time
45-60 Days (Site Dependent)

Ventilation
Ridge Vents and Louvers

Wind Resistance
Designed up to 150 km/h

About Ginning Mill Shed

Large-Scale Industrial Shed Construction (Min. 10,000 Sq. Ft.)

We specialize in the turnkey construction of Large-Scale Industrial Sheds, specifically engineered for expansive manufacturing plants, heavy-duty workshops, and massive distribution hubs. With a minimum project requirement of 10,000 sq. ft., we ensure that every square inch is optimized for structural safety, high-volume storage, and seamless industrial operations.

Technical Capabilities for Large-Span Projects

Feature	Specifications for Large Sheds
Minimum Project Area	10,000 sq. ft. and above
Clear Span Capacity	Up to 100 meters without internal columns
Main Frame	High-Tensile Steel (IS 2062 / ASTM A572 Grade 50)
Roofing System	Leak-proof Standing Seam or High-Rib Galvalume (AZ-150)
EOT Crane Support	Structural provisions for 5T to 100T Crane loads
Design Standards	MBMA & IS 800 (Compliant with Seismic Zone IV/V)

Why Choose Peb Utkarsha for Your 10,000+ Sq. Ft. Project?

Column-Free Optimization: We specialize in Clear Span technology, allowing for an unobstructed floor area of 10,000 sq. ft. or more. This is essential for large-scale machinery placement and high-velocity forklift movement.
Engineered for Heavy Loads: Our sheds are not "standard kits." Each structure is custom-engineered using STAAD.Pro to support heavy dynamic loads, including overhead EOT cranes and massive solar rooftop installations.
Rapid Industrial Deployment: For projects exceeding 10,000 sq. ft., our automated fabrication at Nagpur ensures that all components are pre-fitted, reducing on-site construction time by 40% compared to traditional methods.
Advanced Climate & Safety Systems: We integrate industrial-grade Ridge Monitors, Turbo Ventilators, and high-performance insulation to ensure comfortable working conditions across vast floor plates.
Strategic Material Sourcing: We utilize high-micron coatings and TATA/JSW/Jindal steel to ensure that large-scale investments remain maintenance-free for decades.

Ideal For:

Large Manufacturing Plants: Steel, cement, and textile mills.
Logistics & Warehousing Hubs: Grade-A storage for e-commerce and 3PL.
Processing Units: High-clearance sheds for agro and chemical industries.
Infrastructure Facilities: Aircraft hangars and heavy engineering bays.

The Peb Utkarsha Quality Promise

Industrial Precision: Based in MIDC Butibori, Nagpur, we are equipped to handle high-volume structural orders with strict adherence to delivery timelines and international engineering codes.

Scale & Stability: Our structures are designed to withstand wind speeds of up to 180 kmph, ensuring the safety of your high-value inventory and machinery over large spans.
